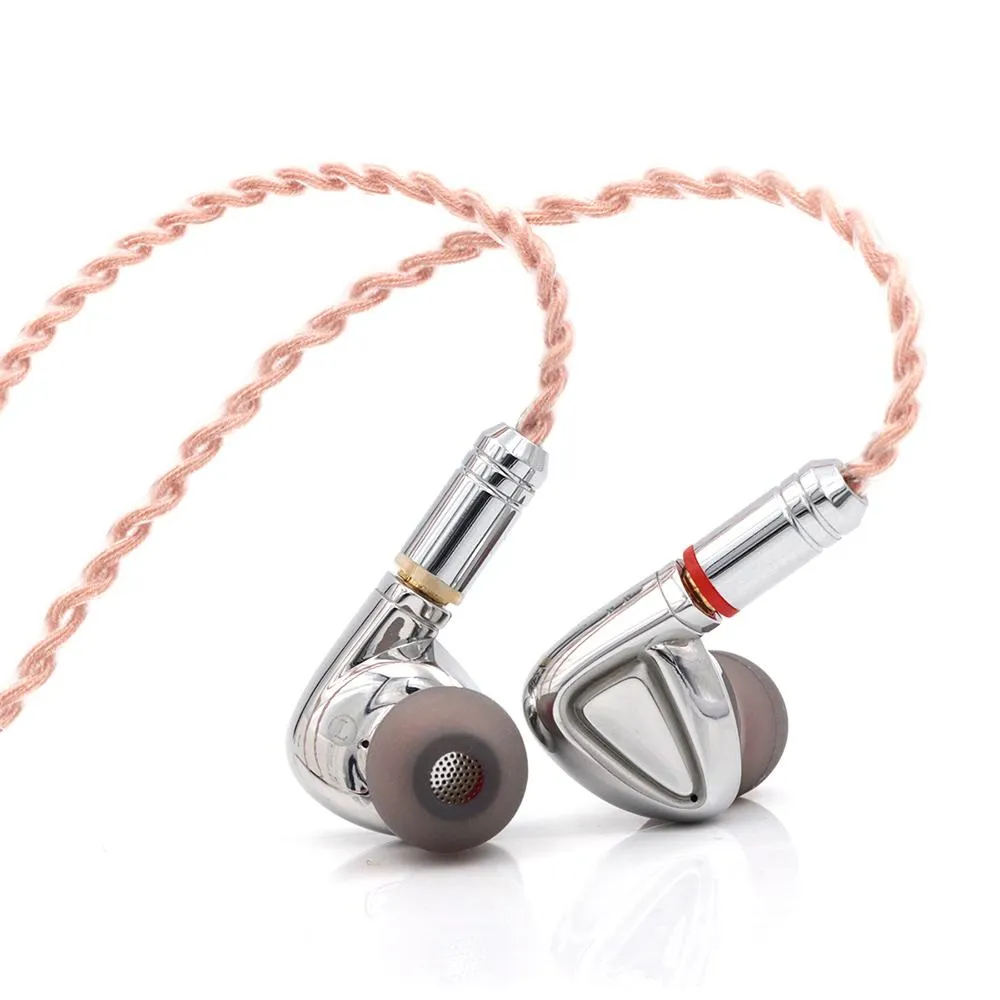

The Upgraded TINHIFI P1 PLUS Planar Diaphragm Earphone
On the basis of the flagship P1 earphone, the magnetic circuit system of P1 Plus is upgraded to a double-sided symmetrical array magnetic circuit combination. A total of 14 magnets on both sides of the film are evenly distributed, so that the force on the diaphragm is more horizontal and uniform, and the vibration frequency of the diaphragm is higher, so the distortion of the speaker is smaller, the sensitivity and the reduction degree are higher and clearer. Really make the sense of detail clear and easy push
Stainless Steel Shell
Based on times of testing and designing, The TINHIFI P1 Plus finally adopts a stainless steel polished shell and a triangular shape along with an angled nozzle to offer comfortable long time wearing experience and elegant looking. The color is also designed to be suitable for audiences as wide as possible. The shells is durable and resistant to everyday use as it has passed rigorous testing and proved to be able to last for years while preserving their shiny appearance
Audiophile-grade 5N OFC MMCX Cable
The P1 Plus follows in the footsteps of its predecessor by offering a state-of-the-art, audiophile-grade superior quality cable and aims for the best quality in audio reproduction. It can greatly enhance the vocals and the instruments in music. The MMCX connector is widely used in the audiophile industry thus we adopts it for P1 Plus. It has been improved a lot based on the previous models’ cable
Ultra-nanometer Diaphragm Technology
The P1 Plus adopts ultra-nano diaphragm technology with a thickness of just 1 micron that allows for higher resolution and faster transient response, making the sound more musical and natural. At the same time, it has a wide soundstage and sound pressure level (SPL) that are comparable to over-ear headphones. This leads to technical specifications being top-notch and to listening experience being pleasant and exciting
Specifications:
Driver: 10mm planar diaphragm
Impedance: 32 Ω ± 15%
Sensitivity: 108±3dB @1K Hz V0.179V
Frequency range: 20 Hz–20kHz
Cable: 1.25m {(18/0.06) oxygen-free copper 200d Kevlar) *3 strands }Φ1.3 * 4 strands woven translucent orange PVC cable
Interface: Gold-plated MMCX connector
Rated power: 5mW
Max power: 10mW
Max distortion: 1% @1k Hz 0.179V
Connectors: 3.5mm
